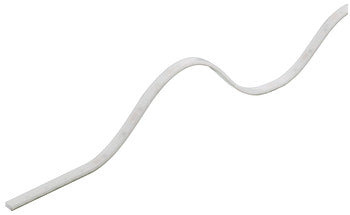

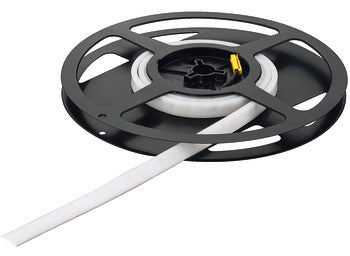

Hafele LED Flexible Strip Light 12 V, Length 3000 mm, 4 mm, Rated IP44, Loox5 LED 2099 833.74.262

€70.64

Article details

Ideal for wardrobes, storage spaces, display cabinets and bathrooms
Light opening on the narrow side, LED points not visible
Delicate groove (width 4 mm) and flat surface, shelves remain adjustable
Wave and circular shaped installation possible (radius min. 30 mm)
Can be split once: Both pieces with separate lead
Splash proof for use in wet rooms

Nominal voltage

12 V

Wattage/m

9.6 W

Max. strip length (visual)

3 m

Strip length

3 m

Energy efficiency class

Dimmable

Yes

Area of application

Display cabinets, Curves, Storage spaces

Material

Silicone

Silicone tube finish

Matt

Silicone tube width

10 mm

Silicone hose height

4 mm

Section length

25 mm

Contact surface length

6 mm

Routing width

4 mm

Routing depth

10 mm

Min. bending radius

30 mm

Degree of protection

IP44

Installation

For recess mounting, For press fitting

Installation reference

Press-fit in 4 x 10 mm groove

Cable length

200 mm

Supplied with

2x 0.2 m soldered lead 3.5 A/20 AWG (1 each on the left/right of the strip)

Additional information attributes

Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter. Max. wattage-dependent strip length on the driver, see technical data for LED strip lights
