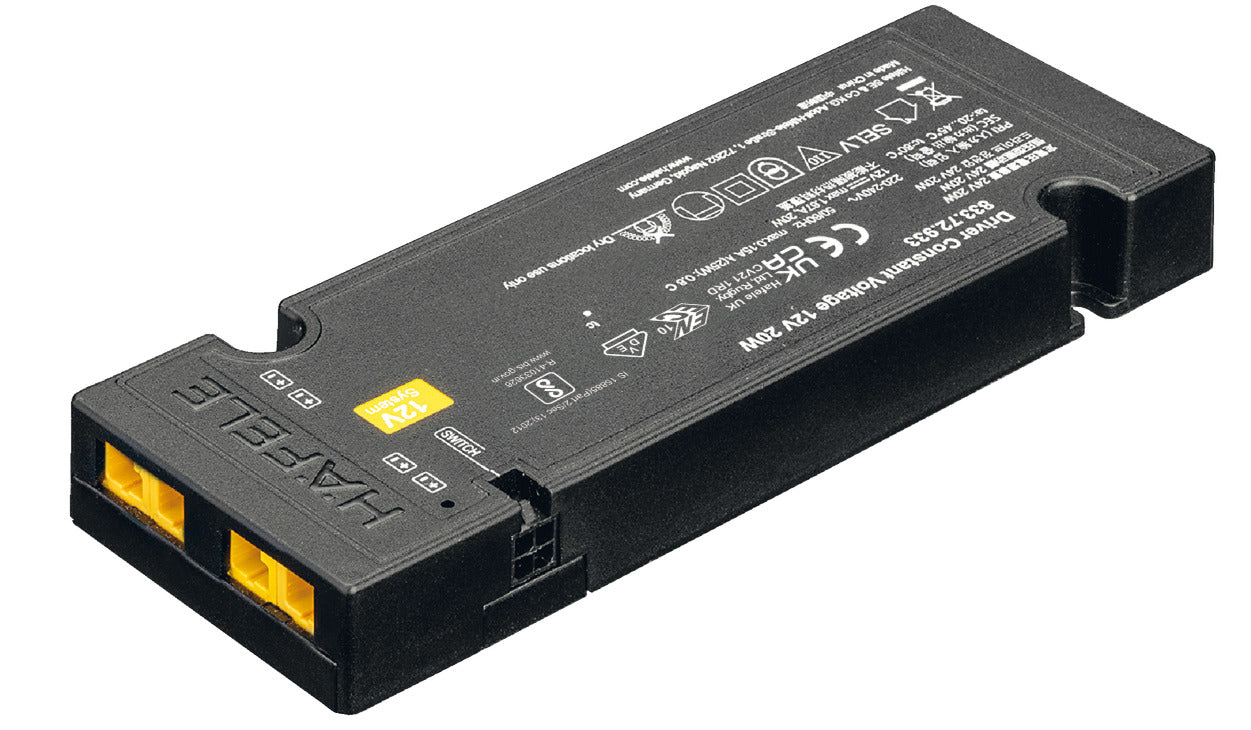

LED Driver 12 V, without Mains Lead, Rated IP 20, Loox5 Eco, 833.72.933
With switching function for 1 switch, Length x width x height 138 x 50 x 16 mm, Wattage 0 - 20 W
For use with Loox5 or Loox5 compatible 12V lights
-
With switching function
Extremely flat, 16 mm
12 V drivers with Loox5 generation plug system
Max. recommended lead length from driver to switch: 6000 mm (leads not included)
Mains voltage
220 – 240 V
Mains frequency
50 – 60 Hz
With switching function
Yes
Ambient temperature
-25–45 °C
Number of switch connections
1.00
Output voltage
12 V DC
Area of application
LED (no other device)
Area of application
For LED lights (not suitable for other devices)
Version
With overload protection
Material
Plastic
Colour/finish
Black
Connected output ports
4 x sockets, Loox5 2-pin 12 V
Control input ports
1 x socket, Loox switch
Installation
for glue fixing, For screwing
Installation reference
Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening.
Output current
1.67 A
