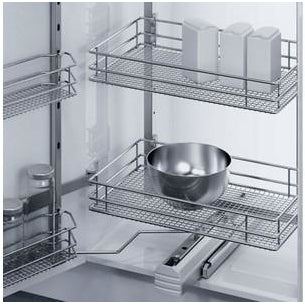

Swing-out pantry unit complete set, centre and door mounting, height adjustable, full extension, with mesh wire storage baskets, for 500 mm cabinet width
• For installed heights:
- 950-1200 mm: 3x each basket (door and main) included
- 1200-1450, 1450-1700 mm: 4x each basket (door and main) included
- 1700-1950, 1900-2150 mm: 5x each basket (door and main) included
- 2150-2350 mm: 7x each basket (door and main) included
• Built-in depth 480 mm
• For cabinet width 500 mm

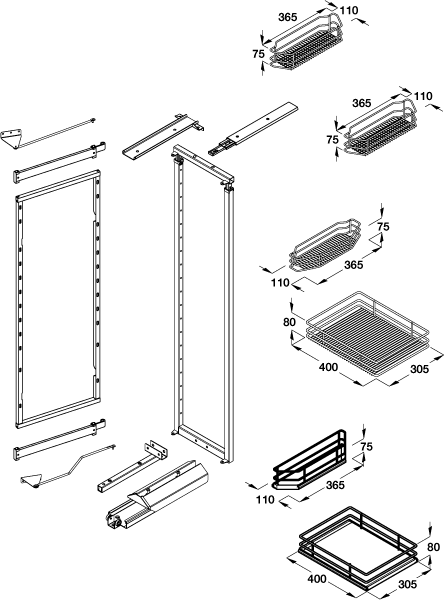

• Set includes:
- Hanging frame, silver epoxy coated tubular steel, height adjustable
- Door mounting frame, silver epoxy coated steel with zinc-plated steel hinge support arms
- Top and bottom runners, full extension, ball cage top runner and self closing bottom roller runner, max. load carrying capacity 80 kg per unit
- Storage baskets for main frame, chrome plated steel, mesh chrome wire
- Storage baskets for door frame, mesh chrome wire
- Basket hanging and securing clips, grey plastic
- Door frame support hinges, grey plastic
- Door panel mounting bars, silver epoxy coated tubular steel
- Door frame fixing arm, grey plastic, adjustable
- Fitting instructions
- 950-1200 mm: 3x each basket (door and main) included
- 1200-1450, 1450-1700 mm: 4x each basket (door and main) included
- 1700-1950, 1900-2150 mm: 5x each basket (door and main) included
- 2150-2350 mm: 7x each basket (door and main) included
• Built-in depth 480 mm
• For cabinet width 500 mm
• Set includes:
- Hanging frame, silver epoxy coated tubular steel, height adjustable
- Door mounting frame, silver epoxy coated steel with zinc-plated steel hinge support arms
- Top and bottom runners, full extension, ball cage top runner and self closing bottom roller runner, max. load carrying capacity 80 kg per unit
- Storage baskets for main frame, chrome plated steel, mesh chrome wire
- Storage baskets for door frame, mesh chrome wire
- Basket hanging and securing clips, grey plastic
- Door frame support hinges, grey plastic
- Door panel mounting bars, silver epoxy coated tubular steel
- Door frame fixing arm, grey plastic, adjustable
- Fitting instructions
