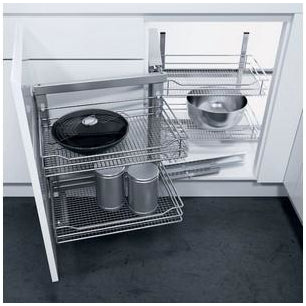

Swing out corner unit complete set, automatic pull-out action, with SAPHIR mesh wire baskets, for 900 mm cabinet
• Installed height: 530 mm
• Built-in depth: 485 mm
• For minimum cabinet width 900 mm, can also be used n 1000 or 1200 mm cabinets
• Set includes:

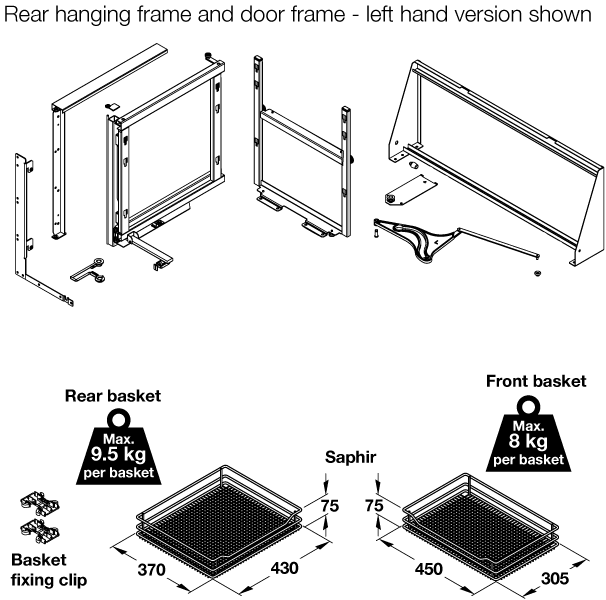

1x Frame set:
- Rear hanging frame and base mounting track; silver epoxy coated tubular steel
- Door frame with pivot; silver epoxy coated tubular steel
- Back frame; silver epoxy coated tubular steel
- Door frame follower; fiber glass improved plastic
- Door panel hanging plates; silver coloured steel; 3 way adjustable, to suit 450, 500 and 600 mm door widths
- Fixing screws and fitting instructions
1x Basket set:
- 2x Storage baskets (rear); chrome-plated steel, mesh chrome, max. load carrying capacity 9.5 kg
- 2x Storage baskets (door); chrome-plated steel, mesh chrome, max. load carrying capacity 8 kg
• Built-in depth: 485 mm
• For minimum cabinet width 900 mm, can also be used n 1000 or 1200 mm cabinets
• Set includes:
1x Frame set:
- Rear hanging frame and base mounting track; silver epoxy coated tubular steel
- Door frame with pivot; silver epoxy coated tubular steel
- Back frame; silver epoxy coated tubular steel
- Door frame follower; fiber glass improved plastic
- Door panel hanging plates; silver coloured steel; 3 way adjustable, to suit 450, 500 and 600 mm door widths
- Fixing screws and fitting instructions
1x Basket set:
- 2x Storage baskets (rear); chrome-plated steel, mesh chrome, max. load carrying capacity 9.5 kg
- 2x Storage baskets (door); chrome-plated steel, mesh chrome, max. load carrying capacity 8 kg
