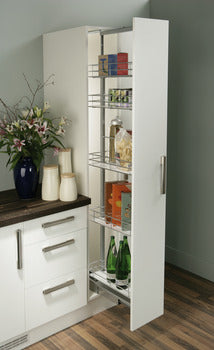

Pull Out Larder Unit, Chrome Linear Wire Baskets, Centre Mounting, Soft Closing

Product details

Centre mounted larder units allowing full access to either side of the baskets
Bottom runner has soft closing action to ensure smooth and gentle closing of the pull out
Compact packaging with interstacking baskets and split frame
Manufactured in the U.K.
Hanging frame installation height adjustable 1700-1950 mm or 1950-2200 mm
The top guide must be fixed under the top panel or shelf, the runner is base mounted
Storage baskets especially shaped to hang centrally in a 300 or 400 mm wide unit
Bracket and crossbar included to fix cabinet doors to larder unit

Tall unit for door front fixing

Screw fixing

Larder unit storage

Centre mounting
Single extension
Soft closing
Inter stacking
With clasic chrome linear wire baskets

485 mm

Max. 10 kg per basket
Runner has 100 kg load capacity

Hanging frame: Tubular steel, 25 x 25 mm
Runners, bracket, cross bar and connecting strips: Steel
Baskets: Heavier gauge steel wire

Hanging frame, ball bearing runner, top runner, bracket and crossbar, door connecting strip: Silver epoxy coated
Storage basket: Chrome plated

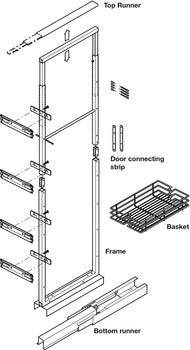

1x Hanging frame with mounting accessories

1x Ball bearing runner

1x Top runner

5x Storage baskets (please note the below)

-300 mm version includes 3 x 225 mm and 2 x 250 mm width baskets

-400 mm version includes 3 x 325 mm and 2 x 350 mm width baskets

1x Bracket and crossbar

1x Door connecting strip

Fixing materials and fitting instructions

Cabinet is not included
