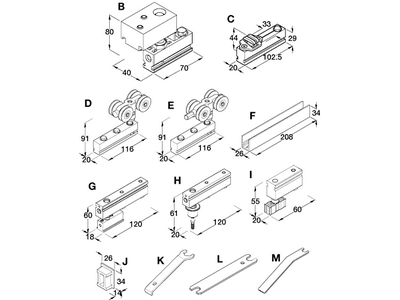

HAWA-Variofold 80/H fitting set
B Top pivot bearing
C Stop with adjustable retainer
D Trolley hanger. M10 plastic-tyred wheels and suspension plate
E Trolley hanger. M10 plastic-tyred wheels and suspension plate and spacer
F Suspension profile. Pre drilled for countersunk screws. Anodised aluminium
G Thrust bearing, for bottom guide channel, including driver
H Thrust bearing sleeve, Ø 20 mm, including driver
I Guide rattle proof, rattle proof, for bottom guide channel, plastic
J Cover cap, grey rubber
K Vertical adjustment key
L Suspension assembly locking wrench
M Fork spanner
• Fitting sets
1 Basic set with pivot bearing and guide
2 Basic set with pivot bearing without guide
3 Additional set with guide
4 Pivot door set to folded stack, without trolley and top pivot bearing
5 Pivot door set for installation with bottom guide channel
6 Pivot door set for installation without bottom guide channel
C Stop with adjustable retainer
D Trolley hanger. M10 plastic-tyred wheels and suspension plate
E Trolley hanger. M10 plastic-tyred wheels and suspension plate and spacer
F Suspension profile. Pre drilled for countersunk screws. Anodised aluminium
G Thrust bearing, for bottom guide channel, including driver
H Thrust bearing sleeve, Ø 20 mm, including driver
I Guide rattle proof, rattle proof, for bottom guide channel, plastic
J Cover cap, grey rubber
K Vertical adjustment key
L Suspension assembly locking wrench
M Fork spanner
• Fitting sets
1 Basic set with pivot bearing and guide
2 Basic set with pivot bearing without guide
3 Additional set with guide
4 Pivot door set to folded stack, without trolley and top pivot bearing
5 Pivot door set for installation with bottom guide channel
6 Pivot door set for installation without bottom guide channel
