HAWA-Junior 80 fitting set with SoftMove, for 1 door

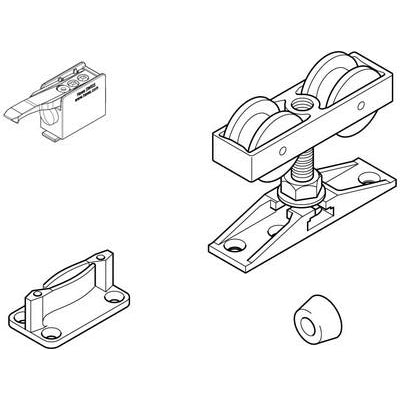

Junior 80 fitting set for 1 door comprises:
Trolley hanger (2 pcs)
- Sleeve bearing, high-grade, polyamide tandem rollers. Retainer profile with suspension plate. M10 hanger pendant and tension bolt. Complete with fastening materials
Track stopper (1 pc/2 pcs with 940.80.112)
- For adjustable mounting in top track, zinc alloy
Guide (1 pc)
- Rattle proof. For screw mounting to floor. Black plastic
Rubber buffer (1 pc)
- Screw fixing
SoftMove (1 pc included with Junior 80 set Cat. No. 940.80.112)
- White plastic body with Ø 14 mm hydraulic metal damper
Number of SoftMove fittings required is dependant on door width:
For one sided dampening:
Min. door width 690 mm
For two sided dampening:
Min. door width 1030 mm
SoftMove can be ordered separately
• Important mounting note: If the sliding door is required to stop at both ends, we recommend installing an additional track stopper
