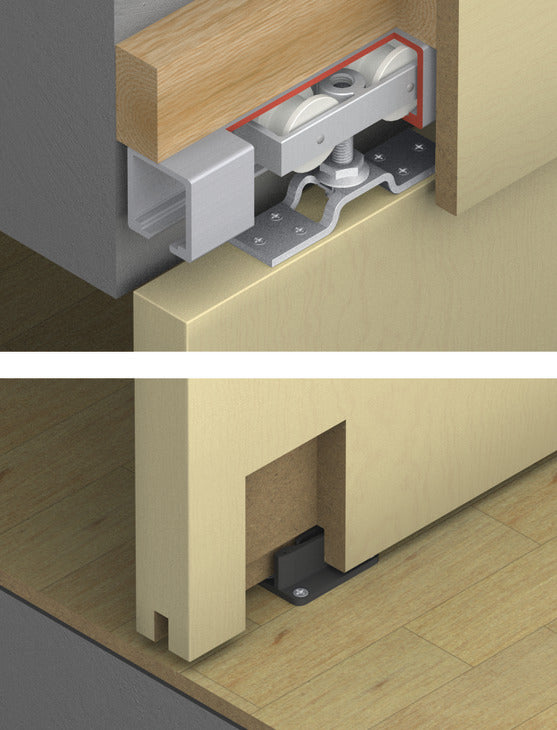

Hawa-Junior 120/A Fitting Set for Sliding Interior Doors
Exceptionally light and silent action
All parts are corrosion resistant
Ideal for heavier duty cavity applications
-
If the sliding door is required to stop at both ends we recommend installing an additional track stopper

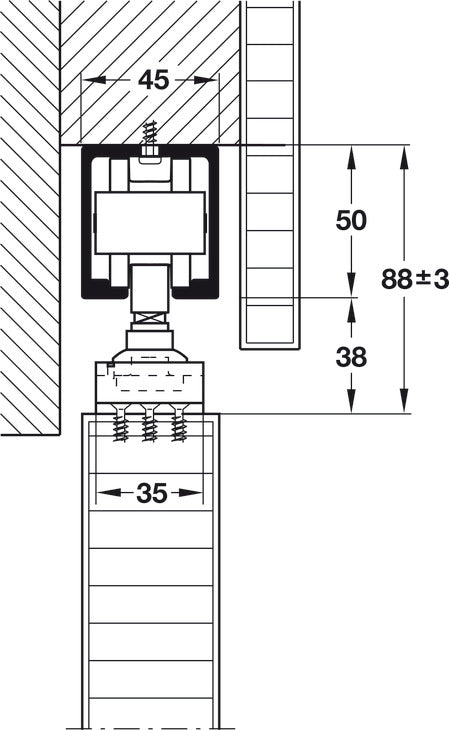

Installation drawing reference 17689
Number of doors per system max.
For door height
Running position
Installation
Door processing
Standard
Classification in compliance with EN 1527
Order reference
Tracks and accessories to be ordered separately
Hospa Ø 4.0 mm pan head and Ø 4.5 mm countersunk screws to be ordered separately
Supplied with

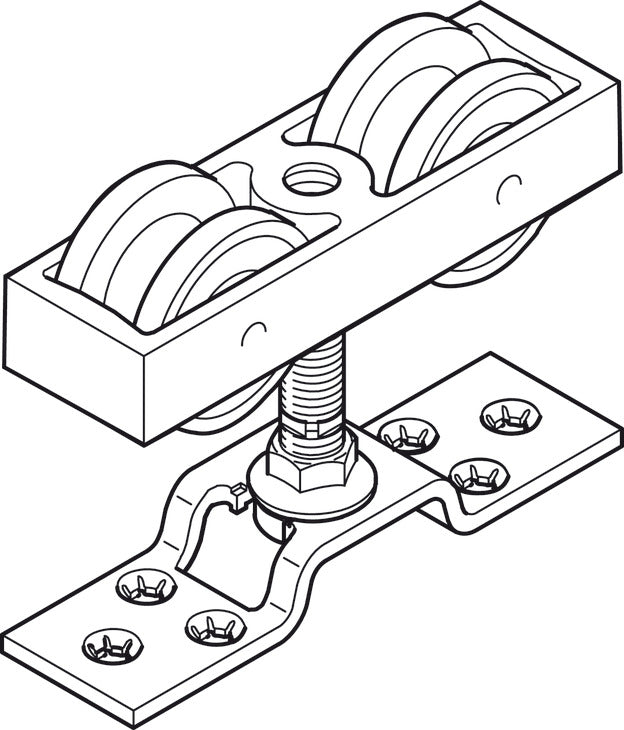

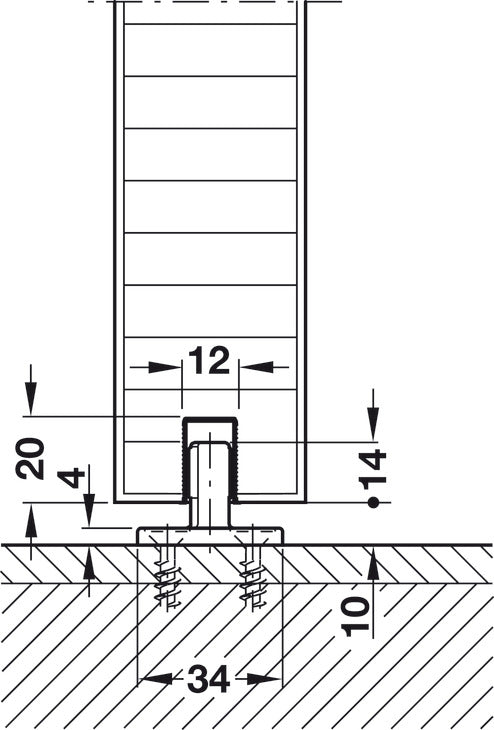

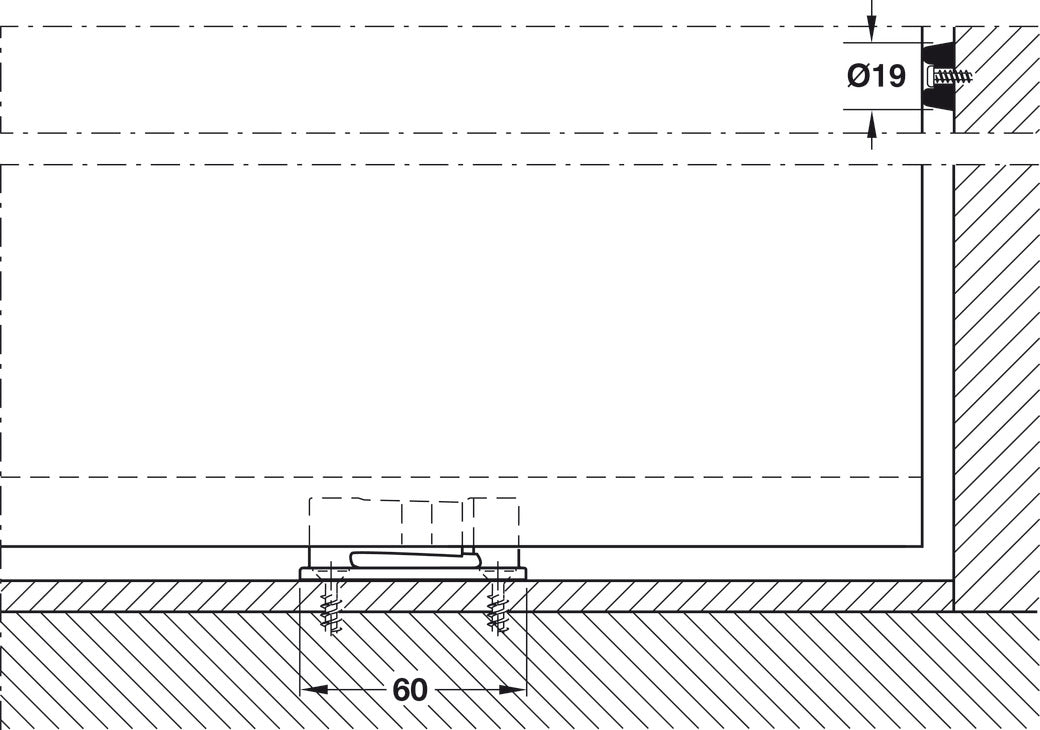

Fitting set for 1 door consists of 1 x Track stopper, 25 x 80 x 35 mm, for adjusting mounting in top track, zinc alloy housing, adjusting retaining force, 2 x Hawa-Junior 120 trolley hanger, sleeve bearing mounted high grade polyamide tandem rollers, 35 x 125 mm mounting plate, aluminium carriage all parts are corrosion resistant, fixings included, 1 x Guide, rattle proof, for screw mounting to floor, black plastic, 24 x 60 x 34 mm, 1 x Rubber buffer, Ø 19 x 10 mm, for screw fixing
