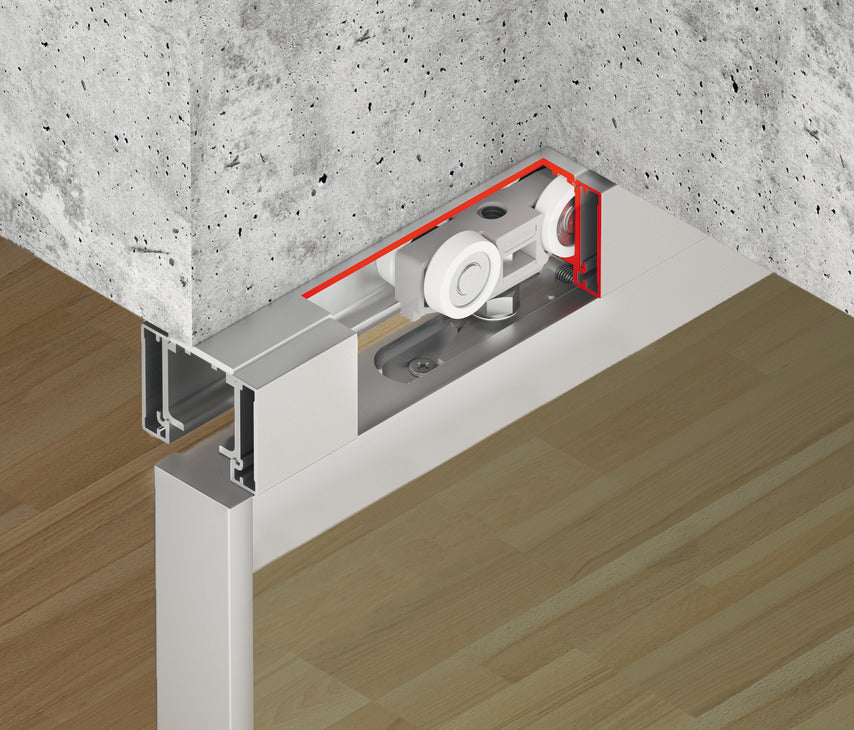

Häfele Slido D-Line11 120C Sliding door fitting set without running track
For 1-leaf wooden sliding doors, ceiling installation and wall mounting, door height adjustable, for door weight up to 120 kg, with soft and self closing mechanism on both sides.
Soft and self closing mechanism:
Low opening force – easy and convenient operation
Tested with increased closing speed up to 0.5 m/s
Can be retrofitted or replaced at any time
Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N
Shock absorber:
Closing speed with shock absorber tested up to 0.4 m/s
Model
120C
For door weight
≤120 kg
For door material
Wood
Controller installation options

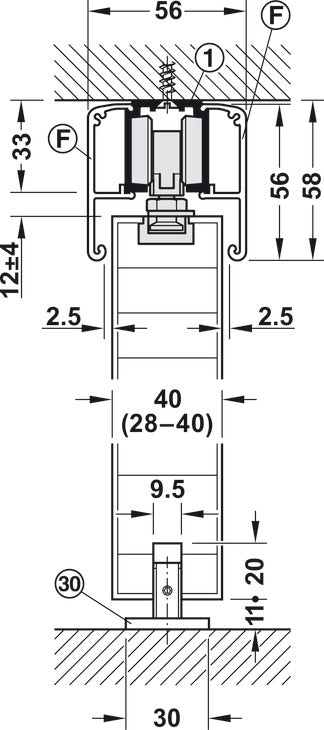

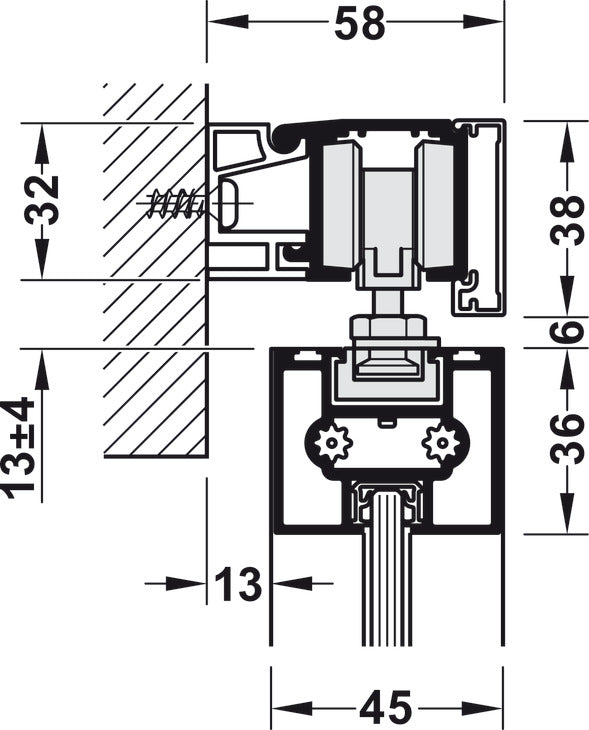

Ceiling installation, Wall mounting
Adjustment facility
Height adjustment: ±3 mm, Door height adjustable
Number of doors
1
Installation

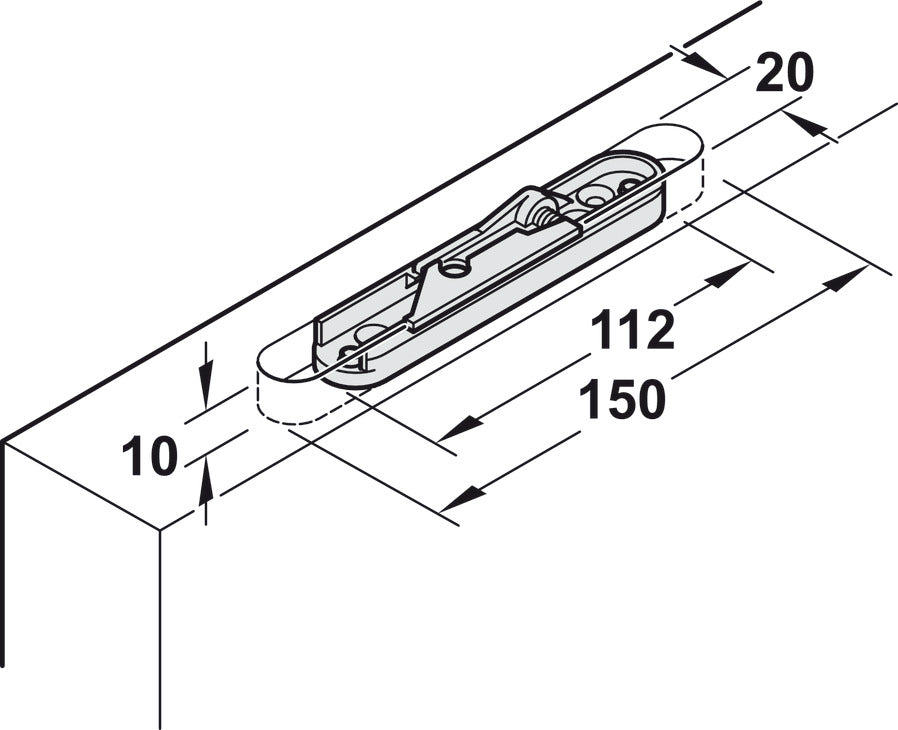

Suspension with recessed flange clip (without tools)
Door processing
For screw fixing
Supplied with

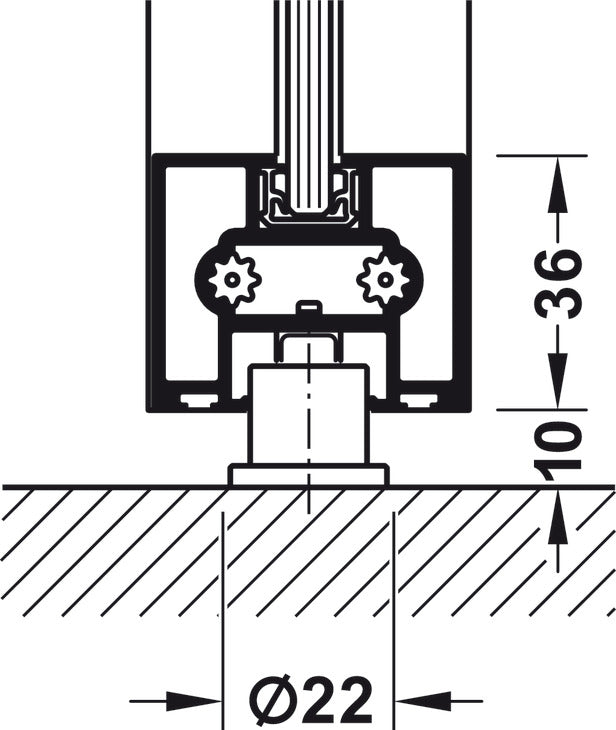

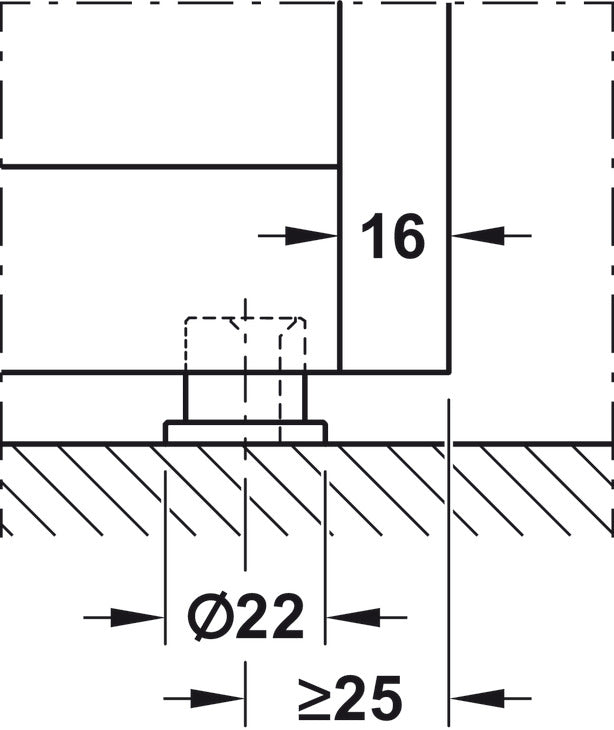

2 running gears1 clear threshold floor guide
2 track buffer with retaining spring
