Häfele concealed 110º, Pie-cut corner cabinet hinge
• Opening angle 110º

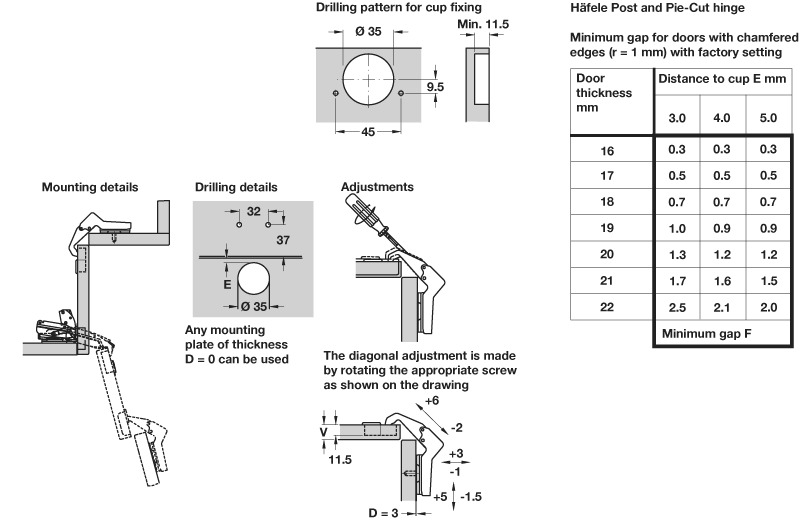

• Drilling diameter for hinge cup: 35 mm
• Drilling depth 11.5 mm
• Hinge on plate mounting system
• Standard drilling for hinge and mounting plate
• Hinge integrated adjustment
• Protective wheel for corner cabinets available
• For mouning plates and accessories see Related Products
• Drilling diameter for hinge cup: 35 mm
• Drilling depth 11.5 mm
• Hinge on plate mounting system
• Standard drilling for hinge and mounting plate
• Hinge integrated adjustment
• Protective wheel for corner cabinets available
• For mouning plates and accessories see Related Products
