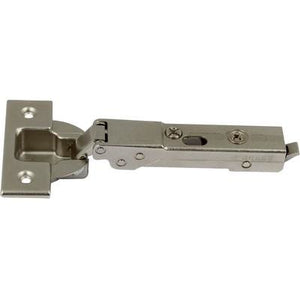

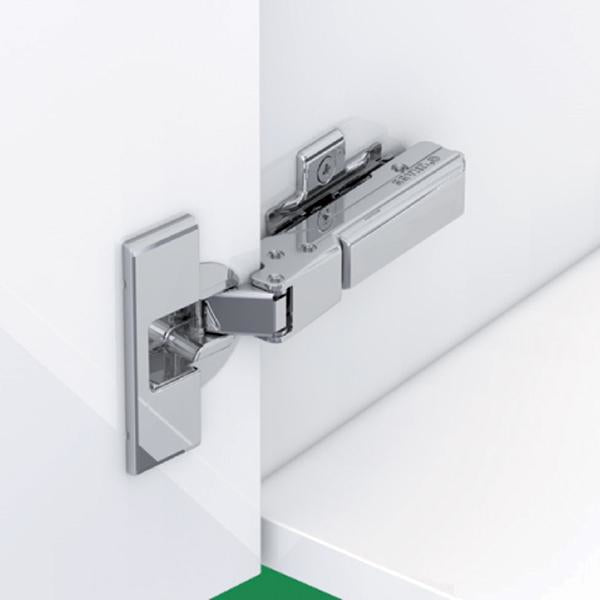

Grass TIOMOS 100º Refrigerator door hinge
• Hinge for refrigerator doors (sliding system)
• Opening angle 100º
• For door thickness up to 24 mm (for door thicknesses 24 mm and above, a trial fitting is recommended)
• Flat hinge arm
• With self-closing mechanism (spring)
• Click on arm
• 3-dimensional adjustment with appropriate mounting plate
• Without integrated damper
