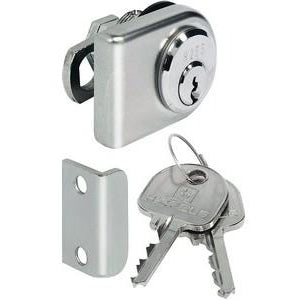

Glass door cylinder lever lock, keyed alike
• With nut attachment
• For glass panels from 4-10 mm
• Closure travel 90°
• With key trap; key can only be removed in locked position
• 5 pairs of pin tumblers = 20,000 possible key changes
• Zinc alloy trim cap
• Brass cylinder
• Accessories: 2x keys, 1x plastic clamping plateand clamping rosette, 1x locking cam, 3 nuts and 1x angled steel striking plate
• 90º Closure directions
• Closure directions can be altered by re-positioning the cam, but always moving in the same direction:
- Closure direction A can be altered to D, F or G
- Closure direction B can be altered to C, E or H
• For glass panels from 4-10 mm
• Closure travel 90°
• With key trap; key can only be removed in locked position
• 5 pairs of pin tumblers = 20,000 possible key changes
• Zinc alloy trim cap
• Brass cylinder
• Accessories: 2x keys, 1x plastic clamping plateand clamping rosette, 1x locking cam, 3 nuts and 1x angled steel striking plate
• 90º Closure directions
• Closure directions can be altered by re-positioning the cam, but always moving in the same direction:
- Closure direction A can be altered to D, F or G
- Closure direction B can be altered to C, E or H
