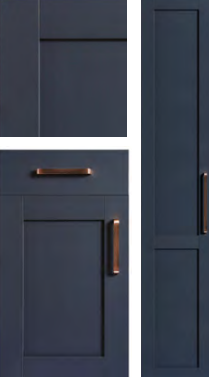

DYLAN - 5 Piece Bedroom Doors
The Dylan door is a 22mm thick 5 piece vinyl wrapped door with 75mm stiles.
Off Stand and Made to Measure sizes also available - Price as next size up +50%. Please note clearly at Checkout the size required.
Plain frames are available on standard size doors at standard door price +50%.
MTM frames are supplied as individual pieces and require manual assembly. Price as next size up +50%
Bedroom Door sizes between 1735mm - 2400mm high are supplied as single panels with one separate mid-rail as standard.
The mid-rail must then be attached manually during installation.
For Panelled Bedroom Doors you must clearly state 3, 4 or 5 panels when ordering to ensure the extra mid-rail pieces are included with your order.
With wood effect finishes the centre panel grain direction will always be vertical. Minimum Door width is 246mm. Beneath this a 146mm single wrapped profile can be
ordered MTM in height only.
Dylan Door sizes between 356 - 1734mm high are supplied 5-piece as standard. Wood effect finishes are supplied with the centre panel vertical grained. Minimum
Door width is 246mm. Beneath this a 146mm single wrapped profile can be ordered MTM in height only.
Drawer sizes between 100 - 215mm high are supplied as 3-piece flat panels with a 90mm stile v-groove. MTM height Drawers are manufactured from the next
nearest profile size (115, 140, 175 and 215mm high) with the bottom cut and edged. This edge should always be placed at the bottom during installation. Wood effect finishes are supplied with horizontal grain in the centre panel and vertical grain on the outer stiles. Minimum Drawer width is 246mm. Drawer sizes between 216 - 355mm high are supplied as 5-piece. With wood effect finishes the centre panel grain direction will always be vertical. Minimum Drawer width 246mm. It’s important to specify either Door, Drawer or Pan Drawer when ordering to ensure your order is processed correctly.
Full Open Frames between 250 - 2400mm high are supplied as single panels as standard.
Top Open Frames are not available.
All Frame Sizes are supplied unglazed.
Non-Standard MTM Frames are supplied as individual pieces and require manual assembly. Minimum Frame width is 246mm.
Dylan Curved Doors:
Curved Doors are made to suit 300 x 300mm cabinets only. Height availability ranges from 570mm up to 2250mm. Curved Doors are supplied with a 90mm mid-rail positioned at 660mm high as standard. This is measured from the bottom of the Door to the bottom of the mid-rail. The mid-rail position can be changed if necessary and must be clearly stated when ordered as it cannot be moved afterwards. With wood effect finishes the centre panel grain direction will always be vertical.
Concave Doors are not available.
*Note: If you have selected 'Made to Measure', please ensure you specify your size requirements in the 'Special instructions for the seller' section of your cart.
