Duo standard 3667 flap/lid stay complete set

  • €8.25


• Light version - minimum installation depth 130 mm

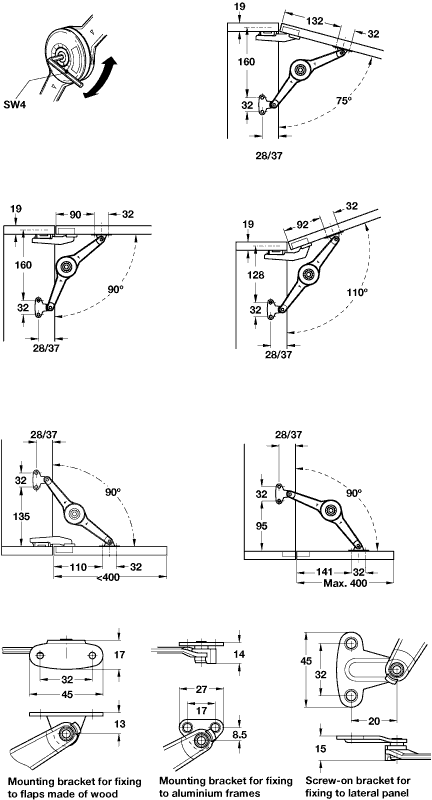

• Opening angles: 75º, 90º, 110º
• Unhanded design

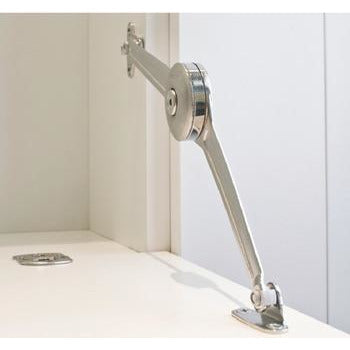

• For use with wooden lids or lids with aluminium frames, also suitable for use as flap stay
• For flaps with aluminium frame with frame width 20 mm of from 45 mm

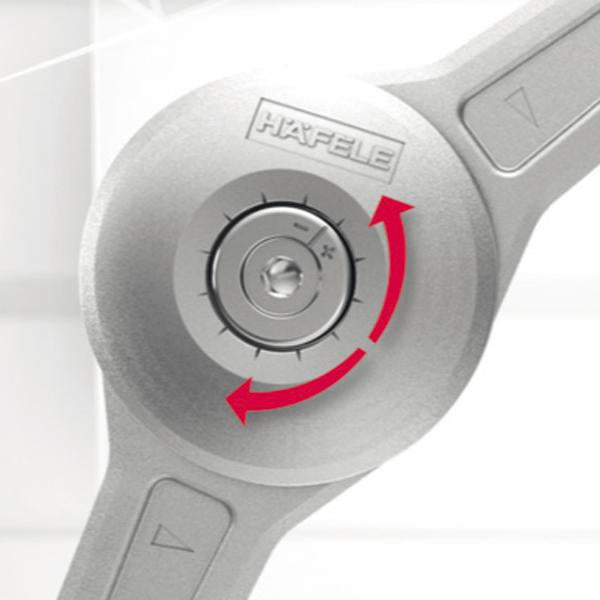

• With braking and locking mechanisms, can be adjusted using an SW4 hex key
• Self closing function
• Clip-mounting on pre-mounted screw fixing brackets, no tools required
• Height ± 2 mm. side +3/-1 mm, tilt ± 1.5 mm and pull adjustment facility

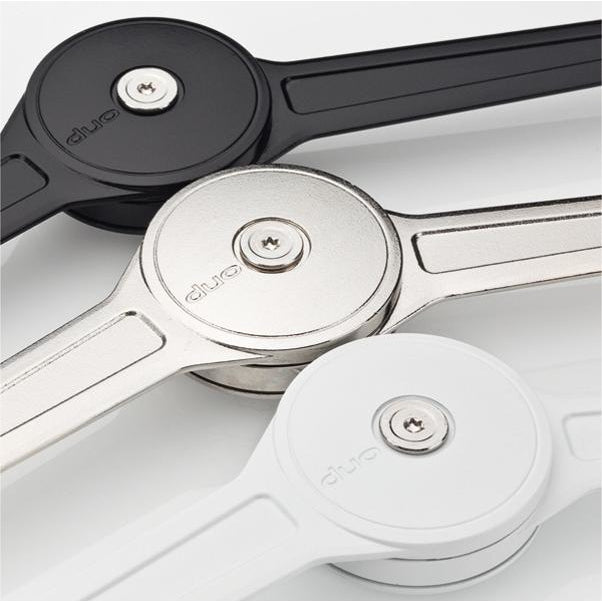

• Steel bracket, zinc alloy lid stay in nickle-plated, black or white
• Installation instructions included
• Please see PDF Page for details on wooden/aluminium frame fixings

• For flaps made of wood, glass or with aluminium frame
• Adjusting the arms (overshear) turns the ld stay into a flap stay
• Less space required inside the cabinet
• Wear-resistant friction coupling with large adjusting range
