Concealed shelf support, screw mounted into masonry walls

  • $4.00


• For concealed mounting of shelves
• For installation directly into masonry walls
• Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
• Screw mounted

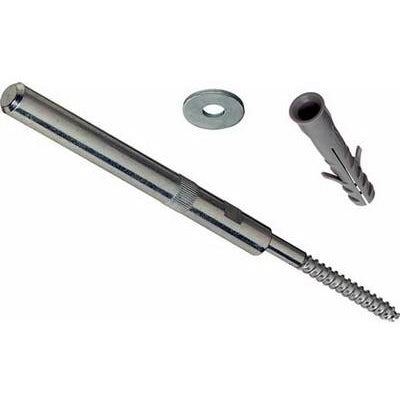

• Fitting ccomprises:

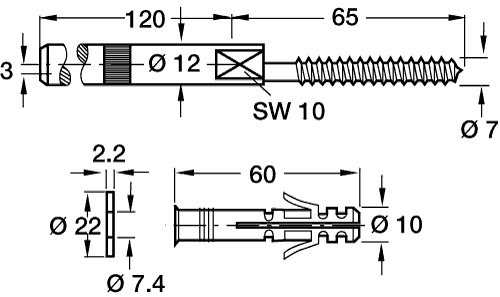

- 1 hardened steel supporting pin with screw
- 1 galvanized steel washer
- 1 nylon wall plug, SR 10 60 mm

• Easy installation and vertical adjustment:
- Drill Ø 10 mm hole and insert wall plug
- Slip washer (supplied) onto screw thread
- Screw shelf support into wall plug
- Install shelf on support as far as the knurled section
- Use an SW 10 open-ended wrench for vertical adjustment
- Finally push the shelf all the way to the wall
