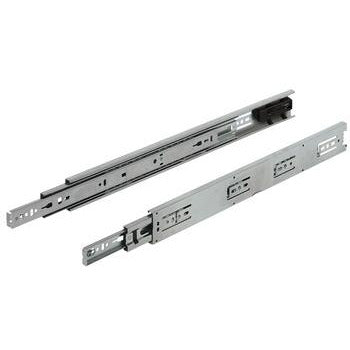

Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg
Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg
Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg
Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg
Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg
Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg

Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg

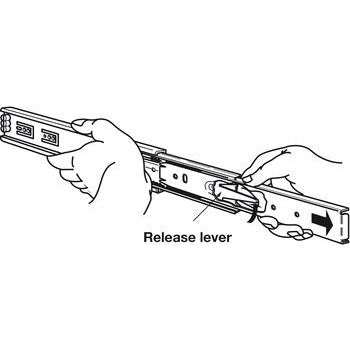

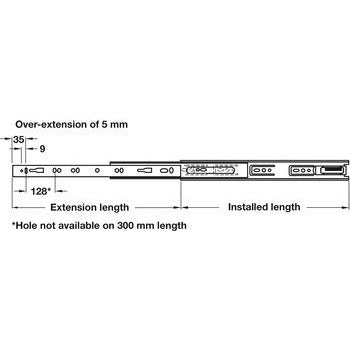

With front disconnect –, Installed length 400 mm, load capacity 44 kg (50 kg), black

Product details

Mounting

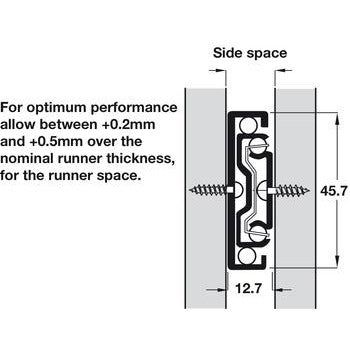

Side mounting

Application

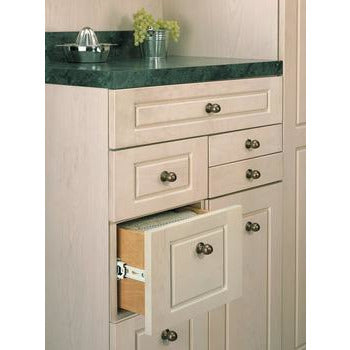

For use in applications such as filing cabinets, desk pedestals and general storage drawers

Installation

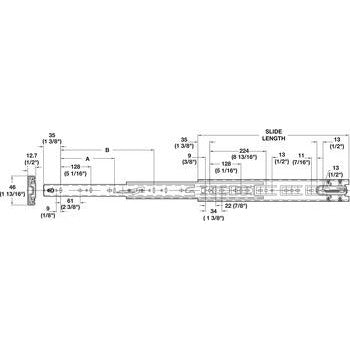

32 mm drilling pattern

Version

Tolerance absorption tabs

Material

Steel

Order reference

Heavy duty version available. Twice the stay close force on the standard self close. Ideal for mobile applications

Optional mounting brackets for bottom or shelf mounting available

Order Varianta Ø 5 cylinder head and Hospa Ø 4.0 pan head screws separately

Fixings: Max. head height 2.5 mm, Ø 9.6 mm
