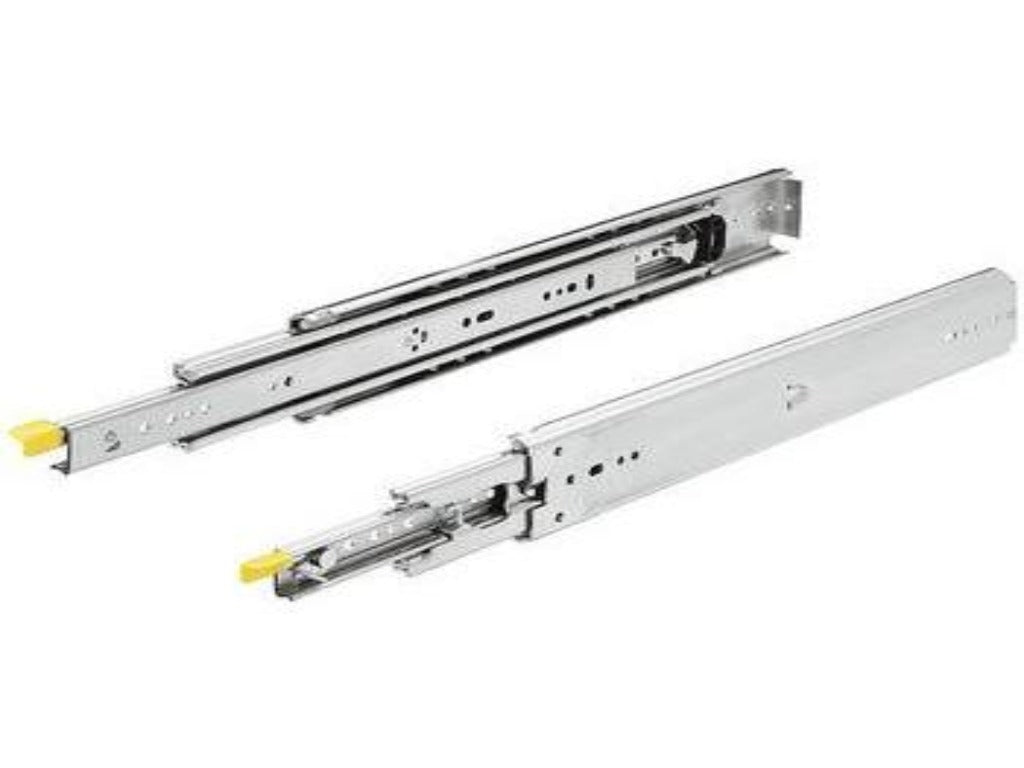

Ball Bearing Drawer Runners, Full Extension, Load Capacity 154-227 kg

  • €78.75

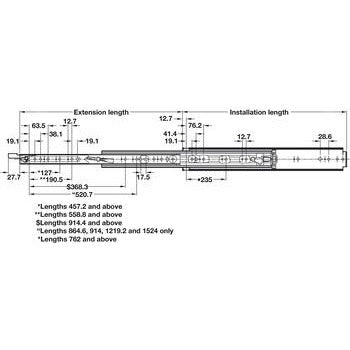

Lock in and out facility –, Installed/Extended length 304.8 mm, load capacity 227 kg, left hand

Product details

  • Ideal for heavy duty tool boxes, battery trays and mobile applications
  • Lock in and out facility
  • Front lever lock release
  • Tested to 10,000 cycles

Application

For heavy loads

Mounting

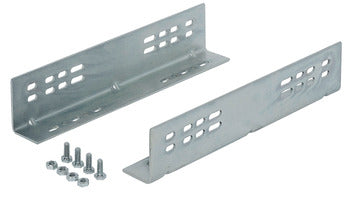

Can be side mounted or base and top mounted using brackets (order separately)
Not for flat mounting

Material

Steel

Finish

Bright zinc plated

Order reference

Order Hospa Ø 4.0 and Ø 5.0 countersunk screws separately

Fixings: Max. head height 4.8 mm, Ø 12.7 mm
