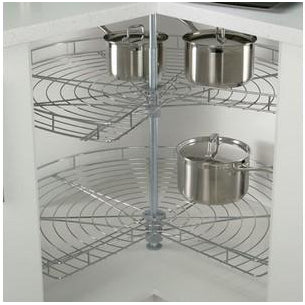

Three-quarter circle carousel set, 634-715 mm spindle
• Shelves swivel independently
• Shelf height: 46 mm
• carrying capacity 15 kg per shelf
• Spindle fitted to the cabinet at the top and base, vertically adjustable from 634-715 mm

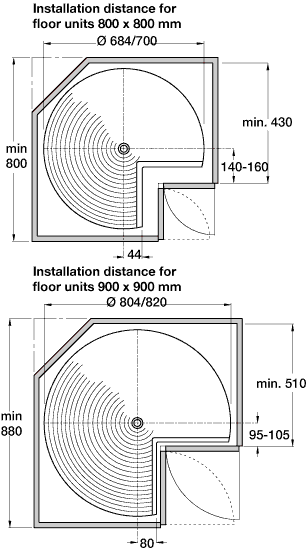

• For cabinet size 800 mm X 800 mm:
- Top carousel Ø 690 mm and bottom carousel Ø 705 mm
• For cabinet size 900 mm X 900 mm:
- Top carousel Ø 805 mm and bottom carousel Ø 823 mm
• Set includes 2x three-quater circle chrome-plated steel carousel shelves, upper and lower bearings, spindle and mounting fittings
• Bright zinc-plated steel spindle with zinc galvanised steel vertical adjustment bearing and grey/black plastic bearings
• Shelf height: 46 mm
• carrying capacity 15 kg per shelf
• Spindle fitted to the cabinet at the top and base, vertically adjustable from 634-715 mm
• For cabinet size 800 mm X 800 mm:
- Top carousel Ø 690 mm and bottom carousel Ø 705 mm
• For cabinet size 900 mm X 900 mm:
- Top carousel Ø 805 mm and bottom carousel Ø 823 mm
• Set includes 2x three-quater circle chrome-plated steel carousel shelves, upper and lower bearings, spindle and mounting fittings
• Bright zinc-plated steel spindle with zinc galvanised steel vertical adjustment bearing and grey/black plastic bearings
