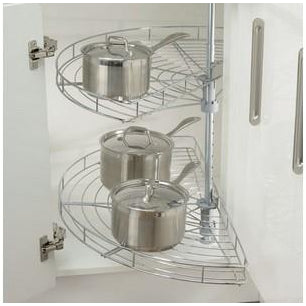

Half circle carousel set, 634-715 mm spindle
• Shelves swivel independently
• Shelf height: 40 mm
• Spindle fitted to the cabinet at the top and base, vertically adjustable from 634 to 715 mm

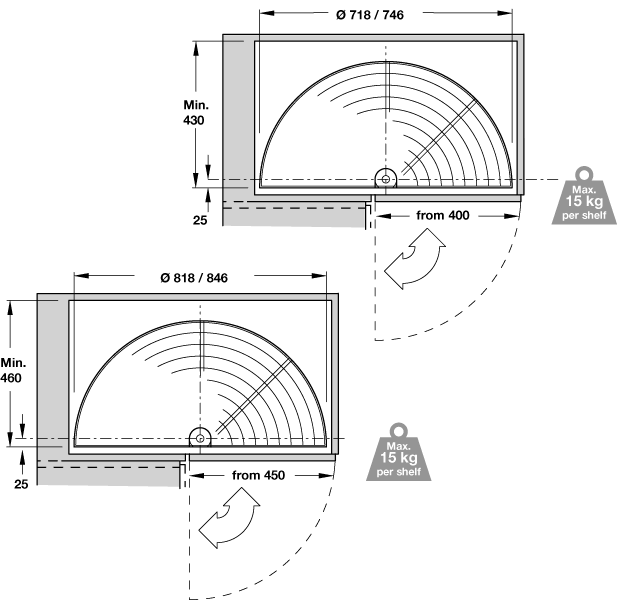

• For min. door width 425 mm:
- Top carousel, 718 x 360 mm, bottom carousel, 746 x 375 mm
• For min door width 475 mm:
- Top carousel, 818 x 410 mm, bottom carousel, 846 x 425 mm
• The upper end of the spindle can be cut if required to fit cabinets with less height
• Set includes 2x half circle chrome-plated steel wire carousel shelves, spindle, upper and lower grey plastic bearings and mounting fittings
• Bright zinc-plated steel spindle with zinc galvanized steel vertical adjustment bearing and grey plastic mounting fittings
• Shelf height: 40 mm
• Spindle fitted to the cabinet at the top and base, vertically adjustable from 634 to 715 mm
• For min. door width 425 mm:
- Top carousel, 718 x 360 mm, bottom carousel, 746 x 375 mm
• For min door width 475 mm:
- Top carousel, 818 x 410 mm, bottom carousel, 846 x 425 mm
• The upper end of the spindle can be cut if required to fit cabinets with less height
• Set includes 2x half circle chrome-plated steel wire carousel shelves, spindle, upper and lower grey plastic bearings and mounting fittings
• Bright zinc-plated steel spindle with zinc galvanized steel vertical adjustment bearing and grey plastic mounting fittings
