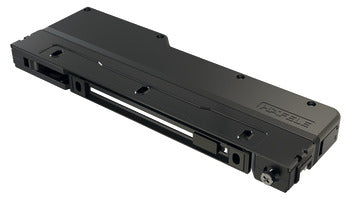

Soft Close Mechanism, Push to Open 315.11.401

€35.75

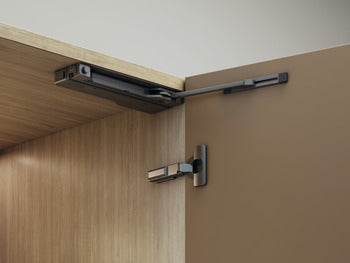

One touch push opening soft close mechanical system is an innovative product for soft close and push to open applications
Integrating push opening and soft closing functions that can free your hands and allow you to operate the door in an environment vulnerable to bacteria
Hands free, hygienic and convenient to operate
Fully mechanical design, no need to connect with electric power
Smart design and occupying little space
Friendly-to-use as closing and opening only by gentle pressing
Revolutionary operation compare to regular push latches

315.11.401

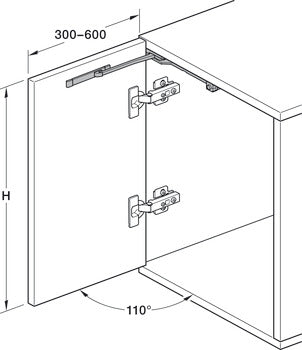

Suitable for

Door width W: ≤600 mm

Version

With automatic opening mechanism and integrated soft closing mechanism

Colour/finish

Black

For door height

≤2,200 mm

For door width

300 – 600 mm

For door weight

≤20 kg

Area of application

For wooden doors without handles or aluminium frames,
For full overlay, half overlay and inset mounting doors

Material

Plastic

Opening angle

110.00 °

Dim. (L x W x H)

202 x 68 x 18 mm

Installation note

Template Available for easy installation

Product quality level tested to 50,000 cycles
