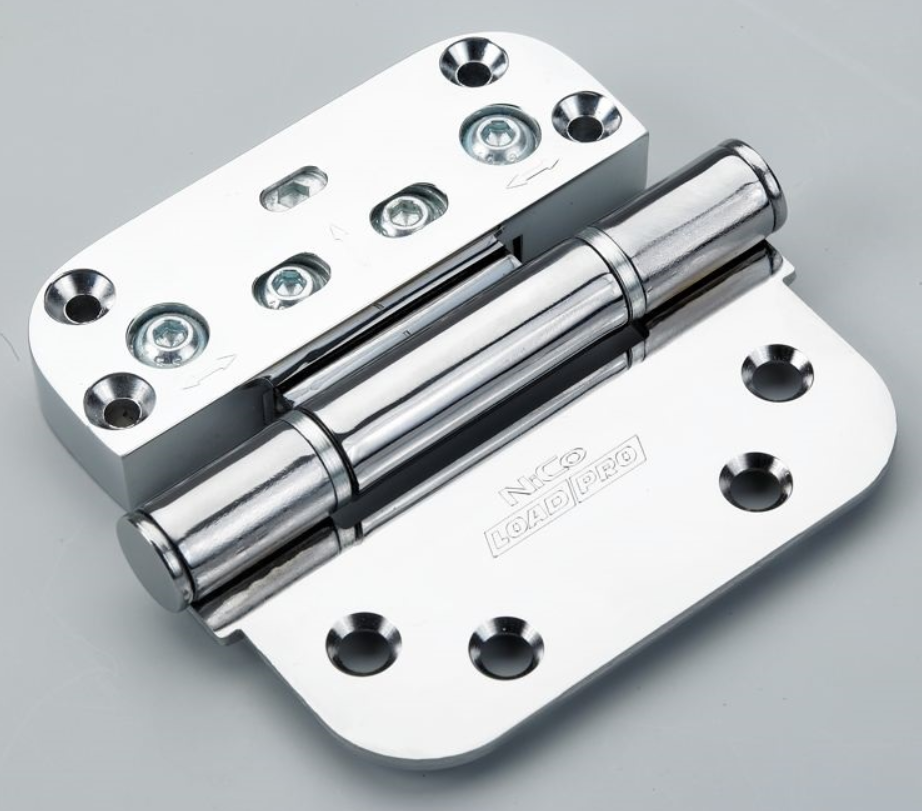

Suitable for both composite and timber doors, the 4915 hinge is independently adjustable in 3 planes using an innovative design which allows the hinge to remain fixed to the door throughout. Maintenance free and featuring low friction bearings for long life performance, the 4915 provides maximum flexibility on doors up to 80kg.

Features & Benefits

• Maintenance free

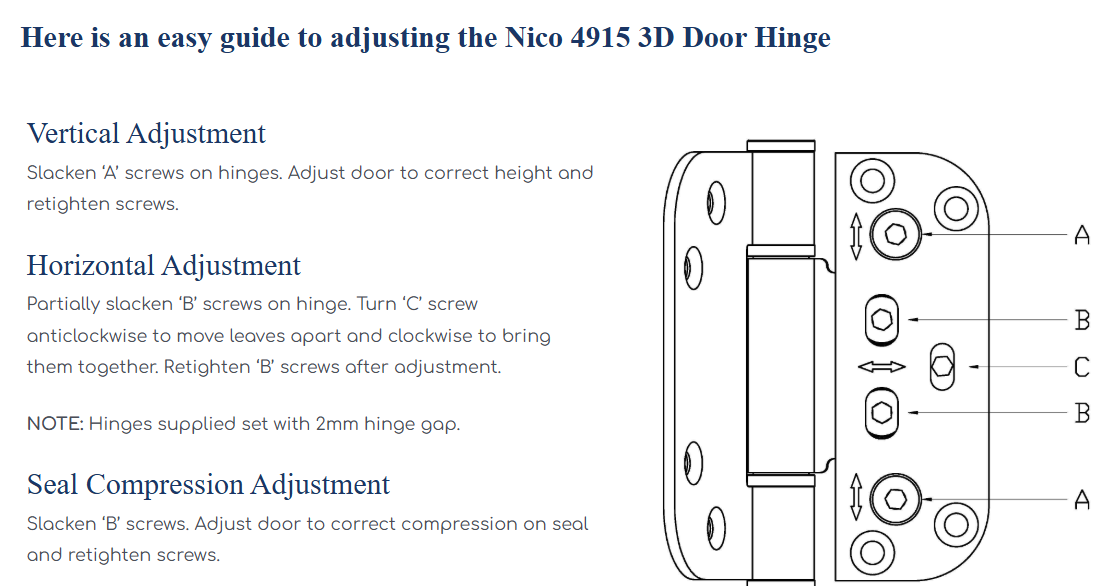

• Independent, in situ 3 way adjustment with no shims required

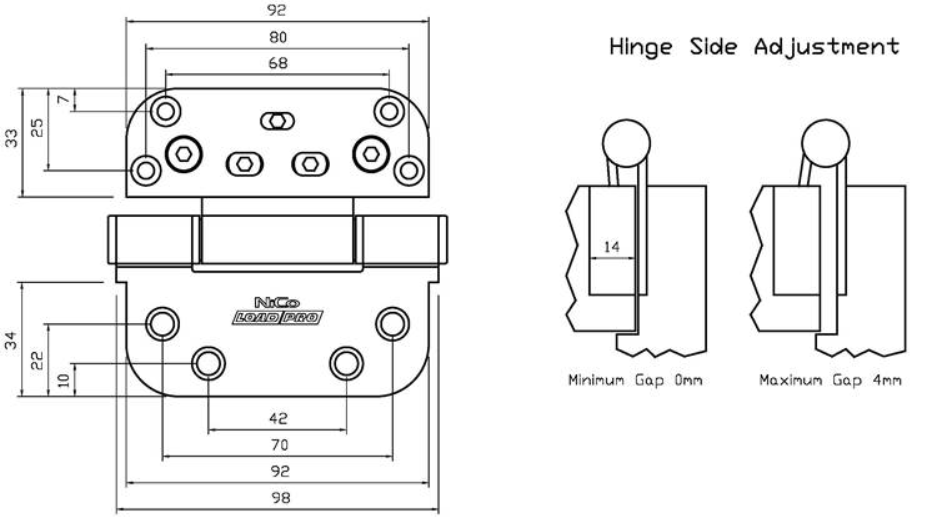

• +/- 2.5mm height adjustment, +/- 2.5mm side adjustment, +/- 2.0mm depth ( compression ) adjustment
• Hinge remains fixed to the door during adjustment process
• All adjustments via one 4mm allen key
• 80kg load carrying capability over 100,000 cycles
• Low Friction Bearings for smooth operation
• Steel hinge body with high performance zinc alloy adjustment housings
• Excellent corrosion resistance including Nico Supercoat option
