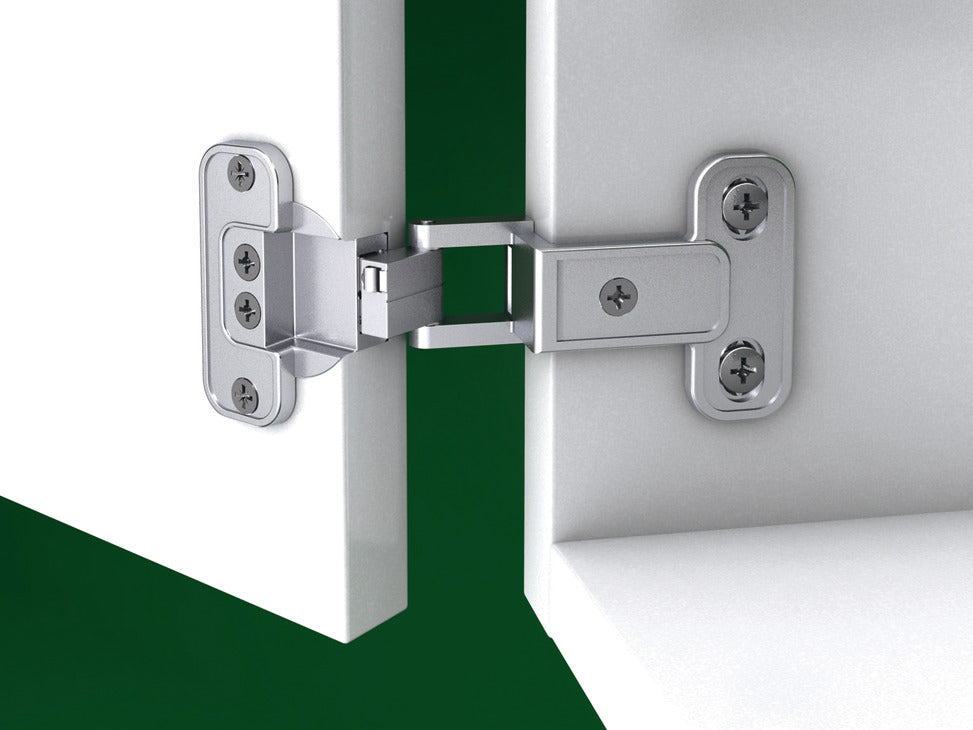

Aximat 100 250º corner hinge with exposed axle, screw fixing

• Large opening angle from of 250º provided by external pivot point
• Almost no loss of space inside the cabinet due to flat design
• With integrated automatic closing spring
• Side panel mounting
• Door fixing: Hospa Ø 3.5 mm raised head countersunk screws
• Side panel fixing: Pre-mounted dowels and Hospa Ø 3.5 mm pan head screws,
pre-mounted Varianta Ø 5 mm screws or Hospa Ø 3.5 mm pan head screws

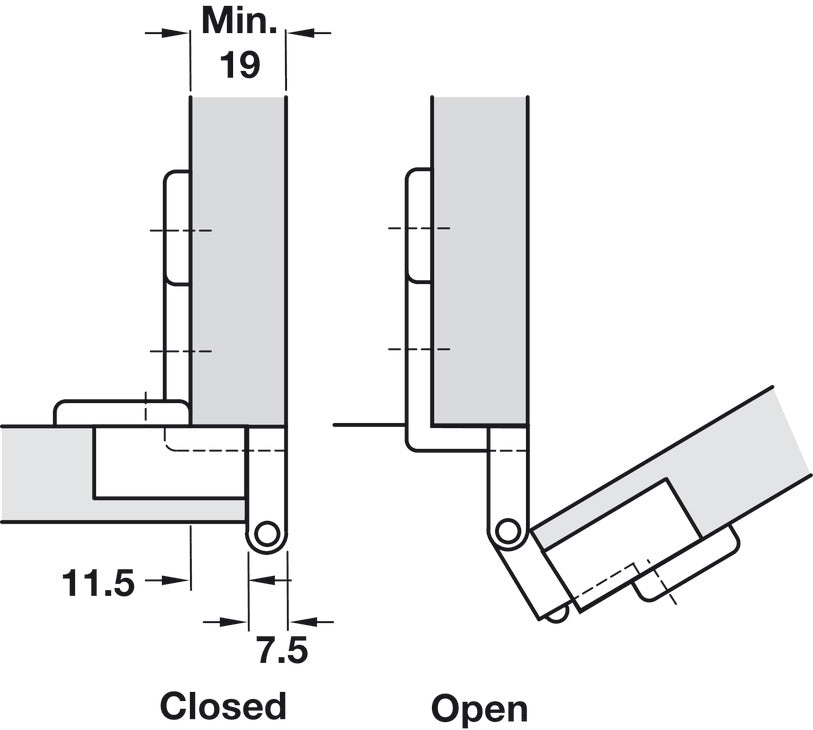

• 13 mm door overlay
• Nickel-plated zinc alloy
